POS. 14 · control computer
AI Detection
The onboard AI recognizes people and vehicles and guides the machine along planned patrol routes — without constant operator supervision.
Ground patrol drone · industrial sites

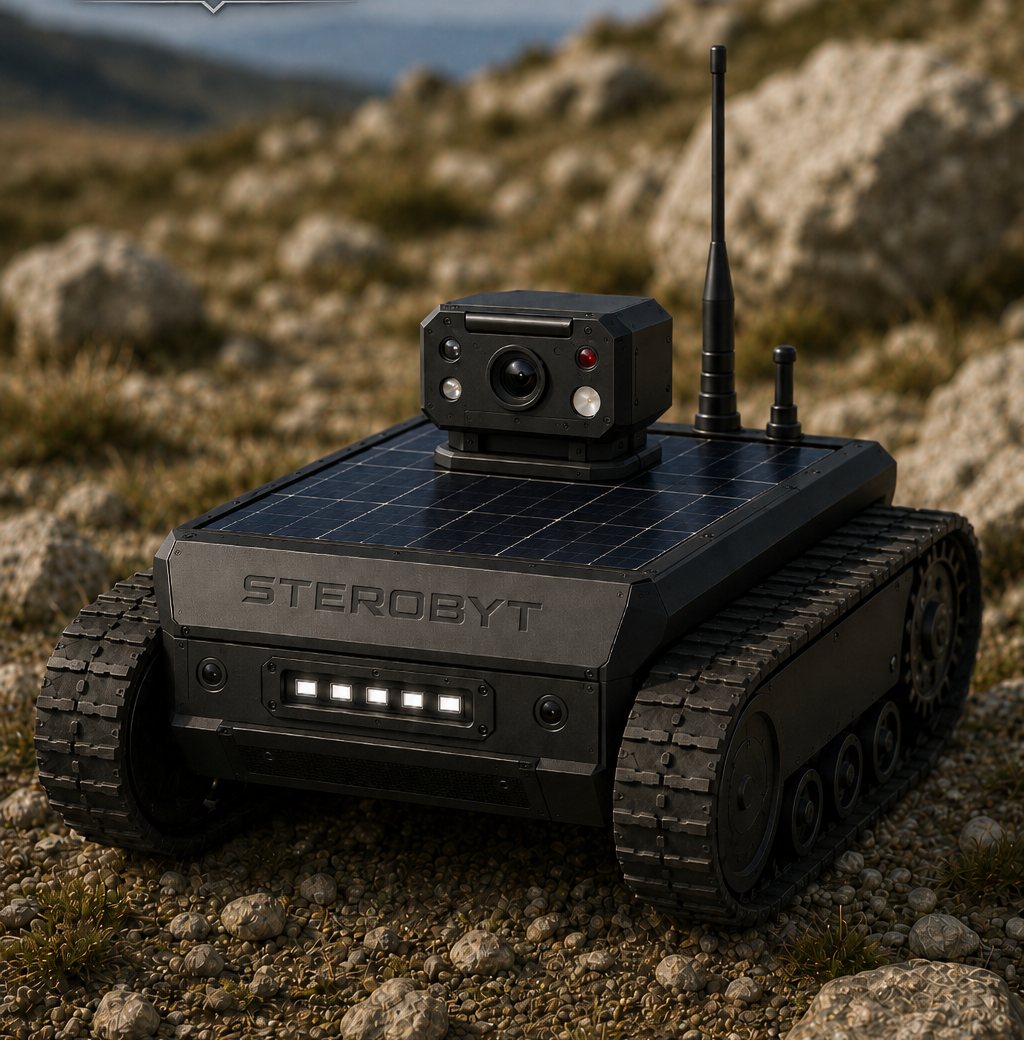

Sterobyt Solar — the patrol that never clocks out
Sterobyt Solar version autonomously guards your site — detecting people and vehicles, escalating the response and documenting everything. It recharges from the sun and an automatic docking station.
≥ 10 hendurance on patrol
< 60 dBnoise at 1 m
IP65−20 to +50 °C
12 km/hmax. speed
1 solar lid 2 PTZ head 3 5G antenna 4 rubber track 5 LED bar · positions per parts list
Equipment · per parts list rev D
What's on Board
27 assembly positions
drawing no. STB-100-02
POS. 3 · PTZ pan/tilt head
The Eye That Sees Everything
Endless 360° rotation, tilt −20° to +60°, 4K with 30× zoom, thermal imaging and a laser rangefinder. It identifies an intruder's face from as close as 0.7 m in front of the machine.
POS. 2 · solar lid
Charges from the Sun
A monocrystalline panel ~60 Wp continuously tops up energy during patrol. Full charging is handled by the automatic 48 V docking station.
POS. 13 · battery module
Swapped in Under a Minute
Li-Ion 48 V / 60 Ah (2.9 kWh). The swappable module slides out through the rear portal — a spare charges in the station meanwhile. Zero-downtime operation.
POS. 6 + 11 · tracks and belt drive
Whisper-Quiet Operation
A toothed belt instead of a chain, rubber tracks and low BLDC motor RPM. Under 60 dB(A) at one meter — the patrol is almost silent.
POS. 4 + 5 · 5G and GNSS RTK
Always on the Map
Precise positioning via GPS RTK, connectivity over 5G, WiFi 6 and VPN. Draw geofences and patrol zones remotely from the dispatch center.
On intrusion · automatic escalation
Response Sequence
every step is logged
video · GNSS · time
STEP 01
Illumination
The LED spotlight integrated into the PTZ block tracks the camera on both axes and lights up the target.
STEP 02
Announcement
A personalized warning from a 20 W speaker — text or audio, in multiple languages.
STEP 03
Siren and Strobe
A ~110 dB piezo siren and strobing LED bars put the intruder at the center of attention.
STEP 04
Live Voice
A dispatch operator speaks on-site in real time — the intruder knows they're being watched.
STEP 05
SBS / Police
Automatic notification of the response service or police, with an evidence record.
Evidence Record
Every event stores video before and after the incident, GNSS position and exact time. Recording of individuals and the response are subject to GDPR — the mode is set by the customer's operating policy.
Technical Specs · Solar Version
Assembly drawing documentation · 9 A4 pages · dimensions in mm
534 mm
820 mm

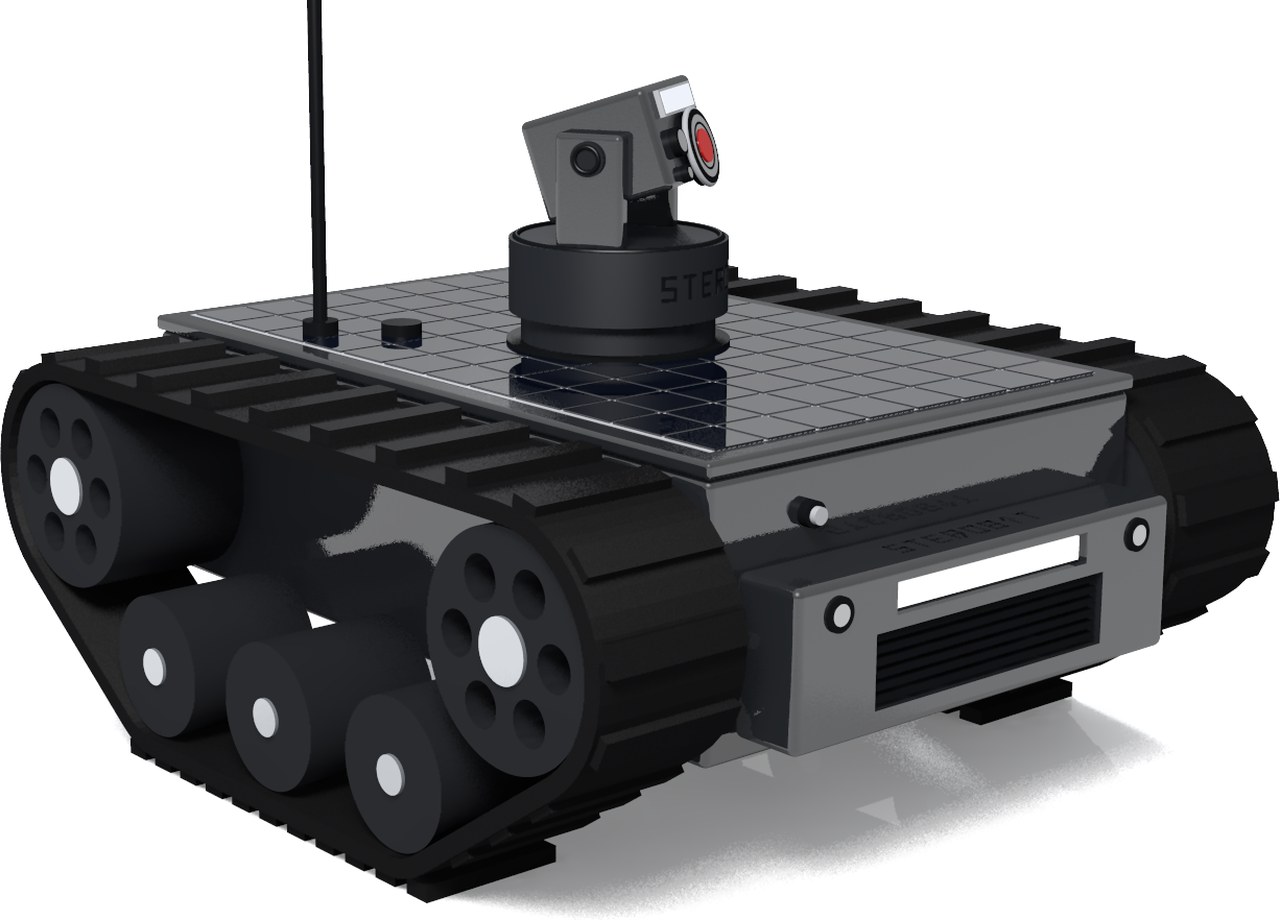

Assembly render · rev D · width across tracks 720 mm · scale for reference only
Parts List / Specs
| Dimensions (L × W × H) | 820 × 720 × 534 mm |
| Weight | ~60 kg |
| Speed | 10 – 12 km/h |
| Endurance / avg. power draw | ≥ 10 h · ~240 W |
| Battery | Li-Ion 48 V / 60 Ah · 2.9 kWh · swappable (~19 kg) |
| Solar panel | mono-Si ~60 Wp, on lid 700 × 450 |
| Drive | 2× FrenoFlux AFM 001/2 · 1.65 kW / peak 4 kW |
| Transmission / brakes | HTD 8M belt, i = 2 · spring-applied NC, fail-safe braking without power |
| Chassis | rubber tracks w. 130 · ground clearance 110 mm |
| PTZ head | pan 360° ∞ · tilt −20° to +60° · 4K 30× · thermal · LRF |
| Sensors | LiDAR 360° · 8× ultrasonic · GNSS/GPS RTK |
| Communication | 5G router · WiFi 6 · VPN |
| Audio | 20 W speaker · siren ~110 dB · live voice |
| Ingress protection / operation | IP65 · −20 to +50 °C |
Drawing No.STB-100-02
RevisionD · Jul 11, 2026
TolerancesISO 2768-mK
Chassis materialEN AW-5754 · RAL 9005
Prepared byVerteco s.r.o.
Chassis: TIG-welded EN AW-5754 · 3 mm walls, 4 mm floor · matte RAL 9005 powder coat · engraved STEROBYT lettering · STEP model fully aligned with the drawing
Operation · 24 / 7
Power and Dispatch
Power
Charged for the Whole Night
2.9 kWh · ~20% reserve
- ~60 Wp solar lid tops up energy directly during patrol.
- 48 V docking station — the drone charges automatically, unattended.
- Swappable module in under a minute through the rear portal — zero downtime.
- Fail-safe brakes engage without power — safe parking and emergency function.
Dispatch / VMS
Your Site Under Control
360° · LiDAR + 8× ultrasonic
- Live map and telemetry — the operator sees the machine's position in real time.
- Geofences and patrol zones drawn remotely.
- Live intervention — the operator's voice straight through the drone's speaker.
- Custom announcements — record online, text or audio, multiple languages.
Frequently asked · FAQ
What Customers Ask
autonomous site security
ground drone · UGV
How long does Sterobyt last on one patrol?
At least 10 hours. Average power draw is ~240 W, and the 2.9 kWh battery includes a ~20% reserve. The ~60 Wp solar lid tops up energy during the day, and the automatic docking station ensures a full charge.
How noisy is the drone in operation?
Under 60 dB(A) at one meter — thanks to a belt drive instead of a chain, rubber tracks and low BLDC motor RPM, the patrol is nearly silent.
What happens when the site is breached?
An escalating response sequence kicks in: illuminating the target, a personalized announcement, siren with strobe, the operator's live voice, and finally automatic notification of the response service or police, with an evidence record.
Is the recording GDPR-compliant?
Yes. Recording of individuals and the response are subject to GDPR — the mode is set by the customer's operating policy. Every event stores video before and after the incident, GNSS position and exact time.
Does it handle winter and rainy conditions?
Yes. The machine has IP65 ingress protection, an IP67 vent membrane, and is designed to operate from −20 to +50 °C.
How does battery replacement work?
The swappable Li-Ion 48 V / 60 Ah module slides out through the rear portal — the swap takes under a minute and a spare module charges in the station meanwhile, so the patrol runs without downtime.
